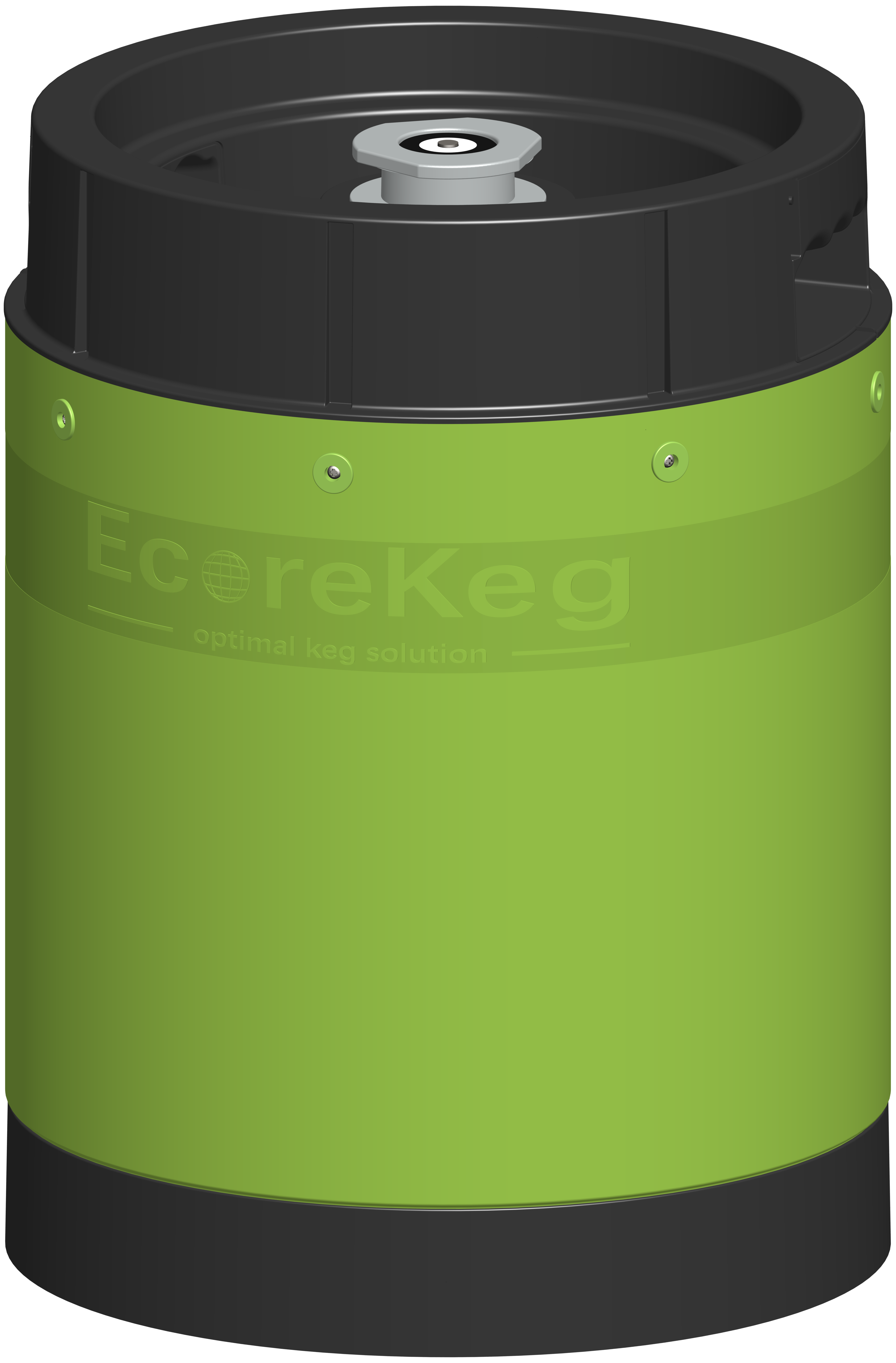

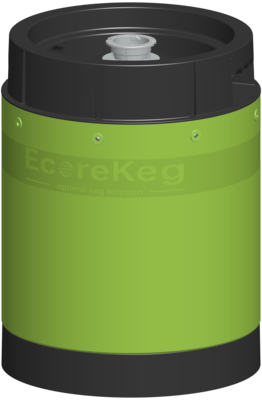

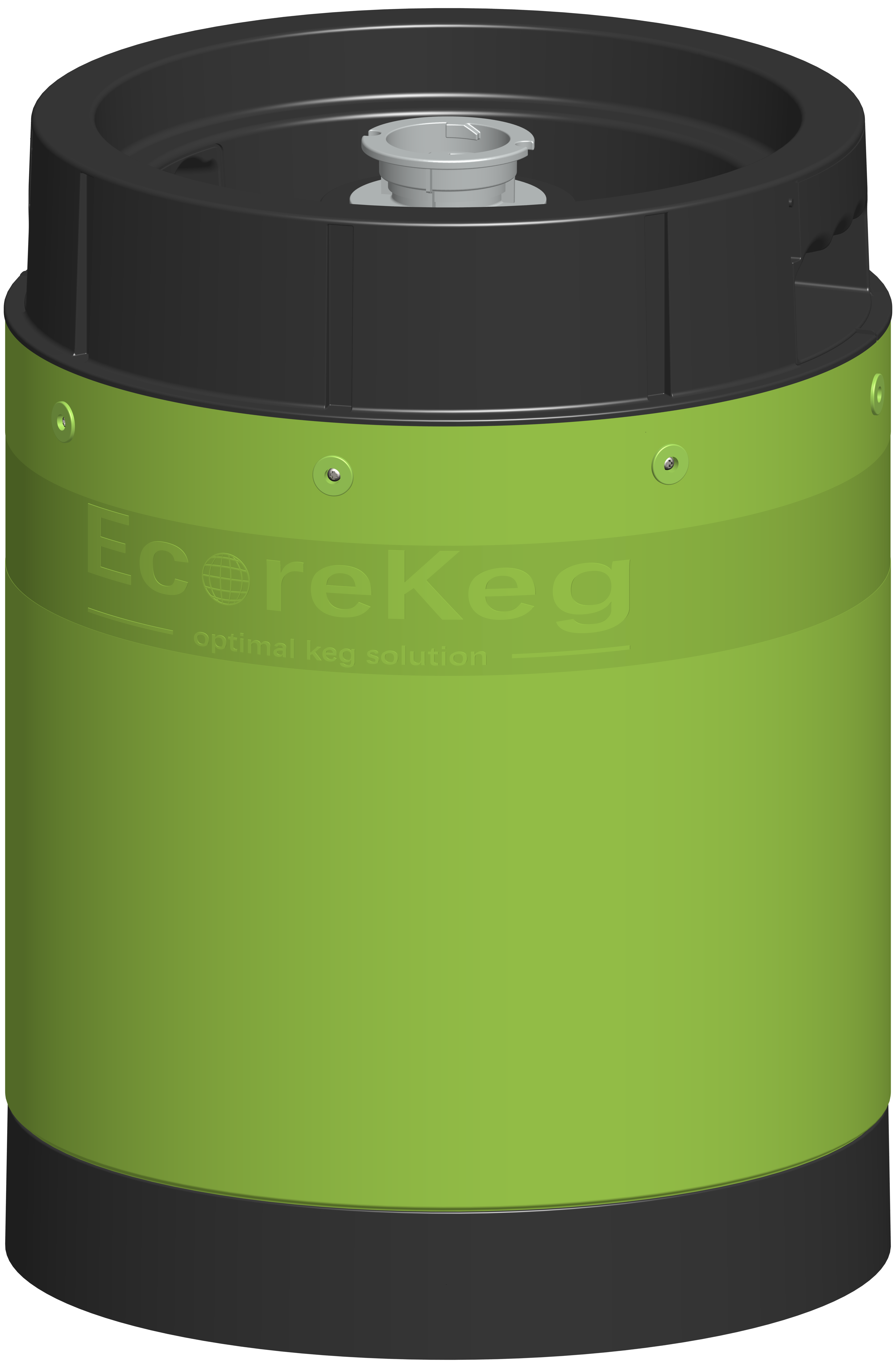

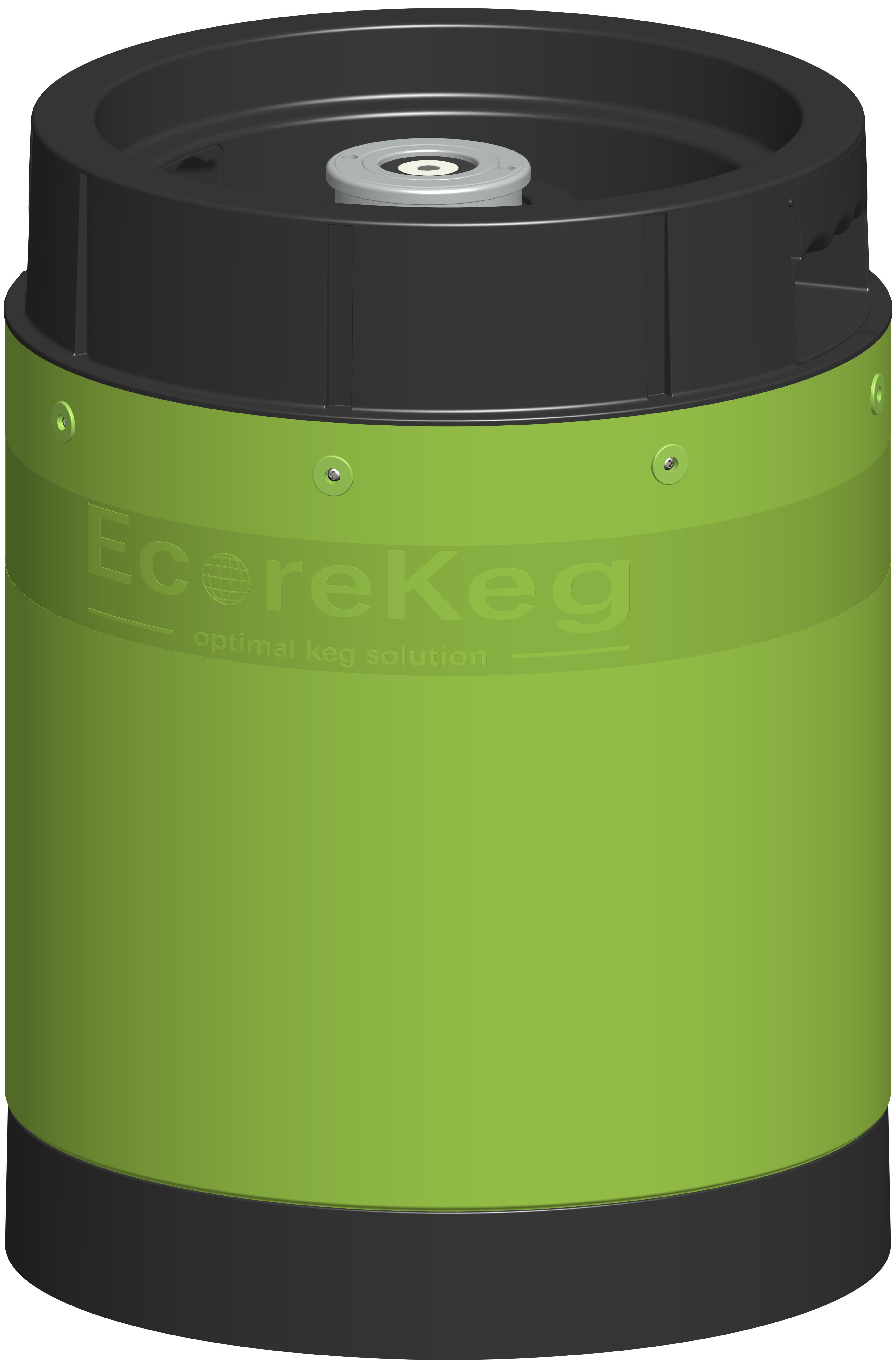

20L Pro

Volume: 20.5 L
Weight (empty keg): 4.8 kg
Dimension: 322 mm (Dia.) 436mm (height)
Material: HDPE & GF
Model: kegpro
Shelf life: Comparable to metal kegs, up to 12 months
O2 transmission per year: < 0.3 ppm
CO2 loss per year: < 5%
Operation temperature: 0ºC ~ 45ºC
Working pressure: 3 bar
Max. pressure: 20 bar
Spear Type: A, S, D, G
Details

Innovative high-end GFRP keg, HDPE blow molded keg with glass fiber winding for reinforcement, bag in keg concept, double keg and double bag system, the best quality, safest, most cost-effective and greenest plastic keg soluiton to replace the stainless steel kegs and/or one-way PET kegs for all beverages.

  • Unique double bag system, up to 12 months shelf life in keg and 4 months shelf life on tap.

  • Unique double keg system, over 20bar pressure resistance, no any risk of one-way PET keg explosion issue, the safest plastic keg solution.

  • Unbeatable cost per fill, up to 60% cost saving vs one-way PET kegs and/or stainless steel kegs.

  • Unique taste preservation techonlogy, to keep the filled beverages fresh and original taste to the end consumers as it's produced in the brewery.

  • zero germs and zero O2 in inner bag and spear, by unique radiation sterilization and air replacement solutions.

  • RFID tag for traceability.

  • Ten years reusing of pro kegs, up to 80% less material waste vs one-way PET kegs and up to 90% less water waste vs stainless steel keg, lowest carbon footprint per fill






The Optimal Keg Solution

  • Bag in keg technology

  • Multi barrier technology, shelf life up to 12 months

  • Unique taste preservation technology, keeping filled beverages fresh and

    original taste till the end consumers as it's produced in the breweries.

  • Keg safety technology, no risk of keg explosion

  • Reusable keg solution, up to 60% cost reduction per fill vs one-way

    plastic kegs

  • Reusable keg solution, up to 80% less material waste vs one-way

    plastic kegs

  • Compatible with existing standard metal couplers - A, S, D, G coupler

  • Compatible with existing metal keg & plastic keg filling line


  • The filled beer can be fully emptied to the last drop, one extra

    glass of beer per keg

  • option of compressed air instead of CO2 for beer dispensing

  • light weight and stable stacking, transport/storing cost saving

  • No cleaning/drying/sterilization and CO2 flushing needed

  • no chemical residue from cleaning process

  • no contamination from pressure medium in beer dispensing

  • unique radiation sterilization and air replacement solution, no

    germs and O2 in the inner bag and spear

  • RFID tag for traceability

  • Customizable on volume, strength, color, brand









The most cost-effective keg solution for all beverages

The unique reusable keg solution, bag in keg solution, enabling the lowest packaging cost for all beverages with still better

quality and safety:

  • every Pro keg can be reused for up to 50 cycles, and every Eco keg can be reused up to 30 cycles, makes the keg cost

    per every filling will be about 1/20~1/30 of the PET one-way kegs, even can be ignored.

  • every cycle only need to change the disposable spear bag, which is only 30% ~ 50% cost of the PET one-way plastic kegs.

These makes, even if with better quality on shelf life and taste preservation, safety, etc. vs the PET one-way kegs, the Ecorekeg

still can lower the costs up to 60% vs the PET one-way kegs for every cycle filling for all beverages; more cycles of the kegs

be reused, more costs can be saved for the brewries.

Get in touch with us, to calculate a more cost-effective keg solution for you.


other advantages on cost-effective Ecorekeg solutions:

> Exist standard couplers - A /S/D coupler...

> Compatible with existing filling line

> Fully empty of filled beverages

> option of compressed air for dispensing

> light weight, transport cost saving

Read more








20231005

The Premium keg solution

  • Unique Multi barrier technology, Up to 12 months shelf life in keg and 4 months on tap for the filled beverages, especially

    draft beer, which is at least 4 times longer than most of the PET one-way kegs, and comparable to the stainless steel kegs.

  • Unique taste preservation technology, keeping the filled beverages especially draft beer fresh and original taste till the

    consumers as it's produced in the brewery.

  • Unique radiation sterilization, 100% free of germs contamination of spear bags.

  • No any risk of contamination from pressure medium.

  • No any chemical residue

Read more








The Safest keg solution


The unique GFRP (glass fiber reinforced plastic) keg concept, over 20bar pressure resistance of Pro series,

and over 15bar pressure resistance of Eco series, overpressure valve for double guarantee, no any risk of

PET one-way keg explosion issues for carbonated drinks, the safest plastic keg solution


Read more



20231005







20231005

The greenest keg solution

not only focus on recyclable, but focus more on reducing total amount of material waste, water waste, chemicals, transport,

etc. for whole series of Ecorekeg products, to reduce the carbon emission and save our environment; up to 80% less

material waste vs PET one-way kegs, 90% less water waste vs stainless steel keg, the most eco-friendly plastic keg solution


Read more







Customizable

Customizable on volume, strength, color, brand for all Ecorekeg Pro, Eco and portable mini kegs ...... Find More
