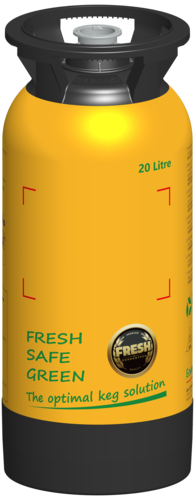

20L Eco

Innovative economical premium GFRP keg series, HDPE blow molded keg with glass fiber winding for reinforcement, bag in keg concept, single keg and single bag solution for balance of cost and product performance.

*** Bag-in-keg soluton, single bag system.

*** Reusable keg, bag replaceable, single keg system;
     kegs can be reused for 10 years or 100 cycles

*** Cost-effective keg solution

*** Safe keg solution

*** Smart keg solution

*** Sustainable keg solution


Product Specification

Volume :20.5 LMaterial:
HDPE, GF, PPCO2 loss/year:
<10%Max. Pressure:
15bar
Weight (empty keg):2.45 kgShelf Life
Comparable to metal keg, up to 12 months
Operation Tempearture:
0°C ~ 45°C
Spear Type:
A, S, D, G, F
Dimension:245mm (Dia) * 595mm (height)
O2 transmission/year:<0.8ppmWorking Pressure:
3barModel:Pro

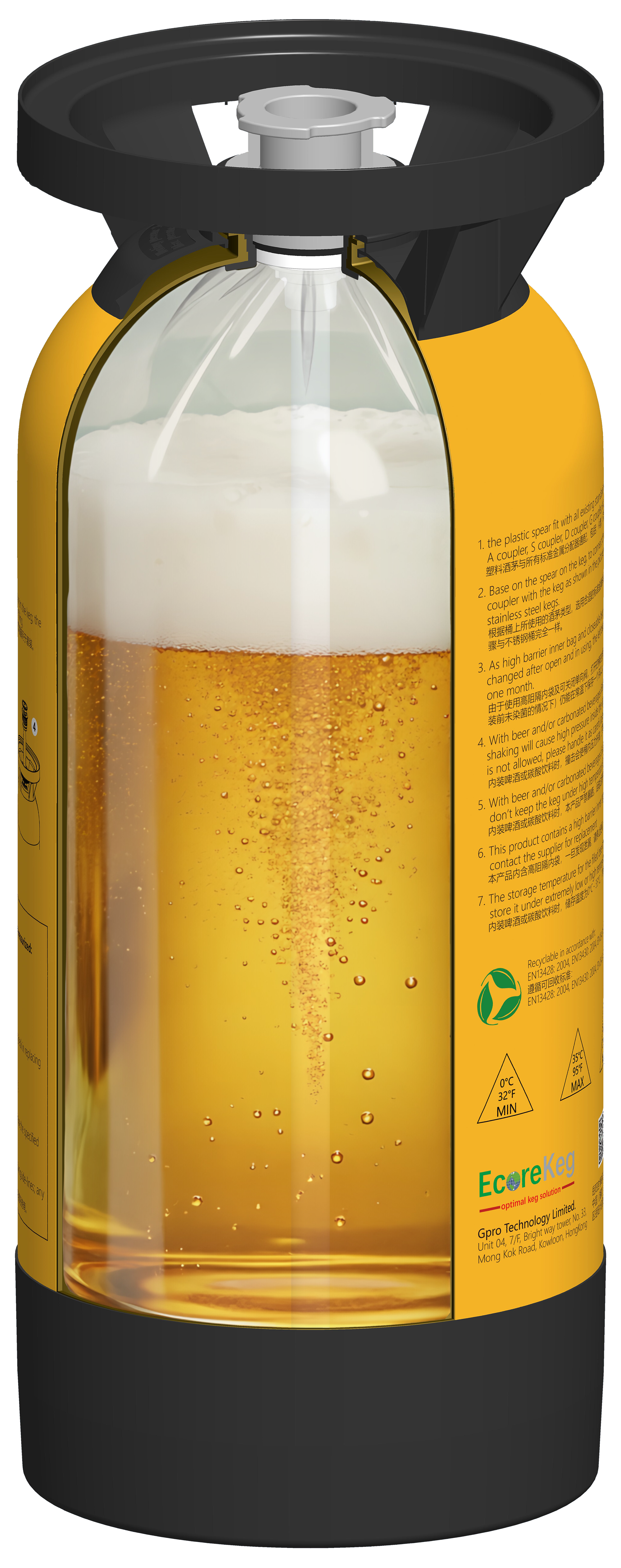

Bag-in-keg, premium keg solution

unique multi barrier technology; the best inner

bag to preserve the filled beverages, especially

for the filled beer; up to 12 months shelf life in

keg and 4 months on tap for filled beverages,

at least 4 times longer than most of the PET

one-way kegs, and comparable tothe stainless

steel kegs.


unique flavor and taste preservation

technology for the inner bags, best

taste preservation to keep the filled

beverages fresh and original taste

till the end consumer as it's

produced in the breweries




Reusable keg solution,

spear bag replaceable

Unique reusable keg solutoin, and bag

replaceable solution, with only a fresh, sterile

inner bag, reducing the costs significantly

compare to a new single use PET one-way keg,

or complicated washing operation of a stainless

steel keg;

Up to 60% cost saving per fill vs one-way

keg and/or stainless steel keg, unbeatable

cost per fill.

Compressed air for beer dispensing, no

expensive CO2 or nitrogen needed; less plastic

waste, less carbon footprint, less relative costs ......








The safe plastic keg solution

The unique glass fiber reinforced plastic

keg solution, and high elongation HDPE

blow molded keg solution, over 20bar

pressure resistance, no any risk of PET

one-way plastic keg explosion for

carbonated beverages.


Overpressure valve for double

guarantee of plastic keg safety


Your Safety, Our concern!





The sustainable keg solution

not only focus on recyclable, but focus more on

reducing total amount of plastic waste, water

waste, chemicals, transport, to reduce the carbon

emission;

up to 80% less material waste vs one-way kegs,

90% less water waste vs stainless steel keg.

Carbon footprint: about 36% of one-way kegs;

15% of stainless steel kegs.







Smart keg solution

RFID or NFC tag on the kegs,

possibility of intergration into

IoT platform


Compliance & Certifications


EU FOOD CONTACT COMPLIANCE

Ecorekeg meets all relevant requirements

in the EU regulations on materials intend

to contact with food

Regulation (EC) No 1935/2004

Regulation (EU) No 10/2011

Resolution CM/Res (2013) 9

Regulation (EC) No 2023/2006

Regulation (EC) No 852/2004





FDA FOOD CONTACT COMPLIANCEE

corekeg meets all relevant requirements in

the FDA regulations on materials intend to

contact with food

FDA 21 CFR 177.1520

FDA 21 CFR 177.1500

FDA 21 CFR 177.1630

FDA 21 CFR 177.1210



Optimal Keg Solutions




Bag-in-Keg

Longer shelf life

Better preservation


Reusable

Robust keg

less plastic waste


Safe keg

Stand high pressure

never explosion


Cost-Effective

Up to 60% cost saving vs

one-way PET keg

unbeatable price



Easy Handling

Easy bag replacement

ligh weight,

easy handling


Sustainable

Less plastic waste

Lower carbon footprint



Applications



Customizable

Customizable on volume, strength, color, brand for all Ecorekeg Pro, Eco and portable mini kegs








Beer

Cider

Wine

Juice


Kombucha

Coffee

Other Beverages

Liquid Chemic
