Spear Bag - Eco & Pro

中文

English

Applications

Customizable
Customizable on volume, strength, color, brand for all Ecorekeg Pro, Eco and portable mini kegs

Other Beverages

Liquid Chemic

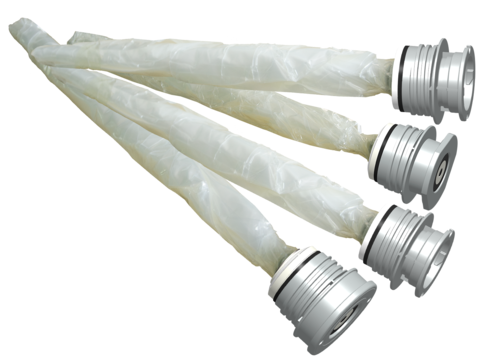

***** 9 layers laminated inner bag and plastic spear for Ecorekeg Pro and Eco kegs.

***** Multi barrier technology, to provide extremely high barrier to both O2 and CO2,
        for long shelf life as well optimal preservation of filled beverages.

***** Unique taste preservation technology for the   bag film, to keep the taste 100%
         stable during the whole shelf life for the filled beverages, especially for the filled beer.

***** sterilized spear bag by boiling and steaming, alcohol sterilization, ozone sterilization,
        and radiation sterilization, spear and inner bag is free of microorganism (bacteria, virus, etc...)

***** Spear bags comply with relative norms of EU, FDA and Japanese norms, etc.

Product Specification

Product	Volume	Spear Type	Dimension	Weight	Used for
10L/15L Spear bag (Pro)	10L, 15L	A, S, D, G, F (K)	72mm(Dia.) x 480mm (Length)	225g	10L Pro keg, 15L Pro keg
18L/20L Spear bag (Pro/Eco)	18L (Pro), 20L (Eco)	A, S, D, G, F (K)	72mm(Dia.) x 548mm (Length)	228g	18L Pro keg, 20L Eco keg
20L Spear bag (Pro)	20L	A, S, D, G, F (K)	72mm(Dia.) x 390mm (Length)	220g	20L Pro keg only
30L Spear bag (Pro/Eco)	30L	A, S, D, G, F (K)	72mm(Dia.) x 548mm (Length)	245g	30L Pro keg, 30L Eco keg

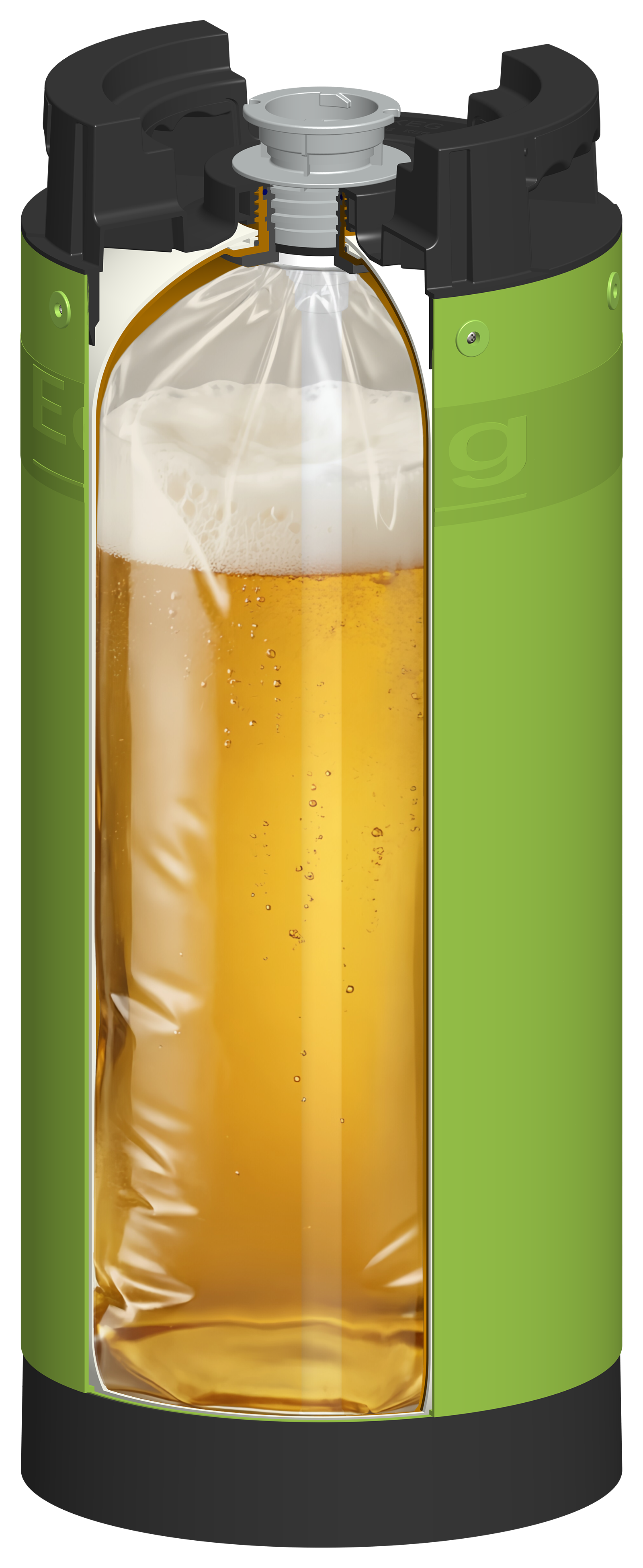

Bag-in-keg, premium keg solution

unique multi barrier technology; the best inner

bag to preserve the filled beverages, especially

for the filled beer; up to 12 months shelf life in

keg and 4 months on tap for filled beverages,

at least 4 times longer than most of the PET

one-way kegs, and comparable tothe stainless

steel kegs.

unique flavor and taste preservation

technology for the inner bags, best

taste preservation to keep the filled

beverages fresh and original taste

till the end consumer as it's

produced in the breweries

Reusable keg solution,

spear bag replaceable

Unique reusable keg solutoin, and bag

replaceable solution, with only a fresh, sterile

inner bag, reducing the costs significantly

compare to a new single use PET one-way keg,

or complicated washing operation of a stainless

steel keg;

Up to 60% cost saving per fill vs one-way

keg and/or stainless steel keg, unbeatable

cost per fill.

Compressed air for beer dispensing, no

expensive CO2 or nitrogen needed; less plastic

waste, less carbon footprint, less relative costs ......

The safe plastic keg solution

The unique glass fiber reinforced plastic

keg solution, and high elongation HDPE

blow molded keg solution, over 20bar

pressure resistance, no any risk of PET

one-way plastic keg explosion for

carbonated beverages.

Overpressure valve for double

guarantee of plastic keg safety

Your Safety, Our concern!

The sustainable keg solution

not only focus on recyclable, but focus more on

reducing total amount of plastic waste, water

waste, chemicals, transport, to reduce the carbon

emission;

up to 80% less material waste vs one-way kegs,

90% less water waste vs stainless steel keg.

Carbon footprint: about 36% of one-way kegs;

15% of stainless steel kegs.

Smart keg solution RFID or NFC tag on the kegs, possibility of intergration into IoT platform	Compliance & Certifications
		EU FOOD CONTACT COMPLIANCE Ecorekeg meets all relevant requirements in the EU regulations on materials intend to contact with food	Regulation (EC) No 1935/2004 Regulation (EU) No 10/2011 Resolution CM/Res (2013) 9 Regulation (EC) No 2023/2006 Regulation (EC) No 852/2004

		FDA FOOD CONTACT COMPLIANCEE corekeg meets all relevant requirements in the FDA regulations on materials intend to contact with food	FDA 21 CFR 177.1520 FDA 21 CFR 177.1500 FDA 21 CFR 177.1630 FDA 21 CFR 177.1210

Optimal Keg Solutions

Bag-in-Keg

Longer shelf life

Better preservation

Reusable

Robust keg

less plastic waste

Safe keg

Stand high pressure

never explosion

Cost-Effective

Up to 60% cost saving vs

one-way PET keg

unbeatable price

Easy Handling

Easy bag replacement

ligh weight,

easy handling

Sustainable

Less plastic waste

Lower carbon footprint
